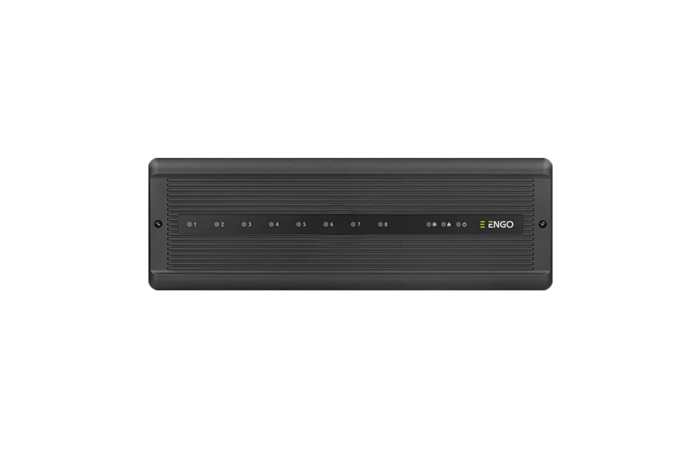

ECB08M230 control box is the main element of the underfloor heating control system. It has a built-in modules that controls the heat sources (by volt-free relay) and pump (230V AC). The control box allows to control 8 different zones. It is equipped with 230V AC voltage outputs for actuators. Pluggable terminal blocks provide quick and convenient wiring connections. The control box is designed to work with NC (normally-closed) type actuators.

Product features:

• control of 8 independent heating zones

• for each of 8 zones dedicated dual output socket for actuators

• voltage output to control the circulation pump

• adapted for mounting on a DIN rail

• very thin housing

• designed for wired thermostats

• built-in heat source control module (voltage free contact)

• 3 min time switching delay built-in function for pump and boiler outputs

• convenient, removable terminals for easy wire connections
