Norm
EN 62311:2020EN 60730-2-9:2010 in concjunction with EN 60730-1:2006+A1:2019ETSI EN 301489-1 V2.2.3
System
WIRED
Max current [A]
3(1)
Power supply
230V AC 50Hz
CH sensor cable lenght
1.5m
Sensor temp. range
-10 – 120°C
Setpoint temp. range for CH
5 - 80°C
System
wired
Temp measurement range
0 - 99°C
Description

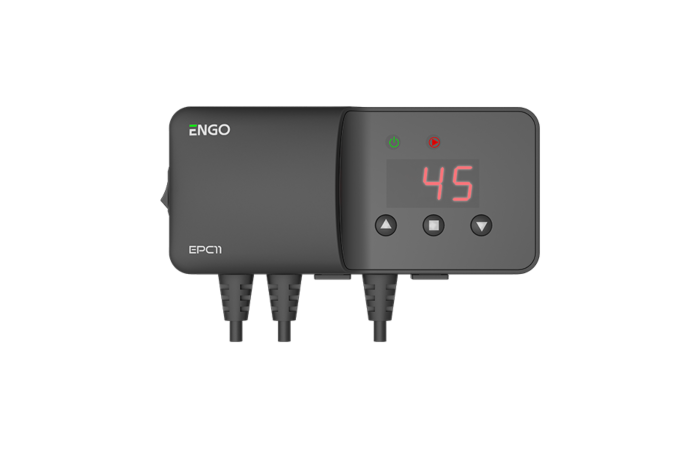

Pump Controller for CH system EPC11
It is designed to control the water pump in the central heating circuit.
The task of the device is to turn on the pump if the temperature exceeds the desired value and turn it on if the boiler cools down (due to shutting down).
This prevents unnecessary pump operation and extends its life, which saves electricity.
