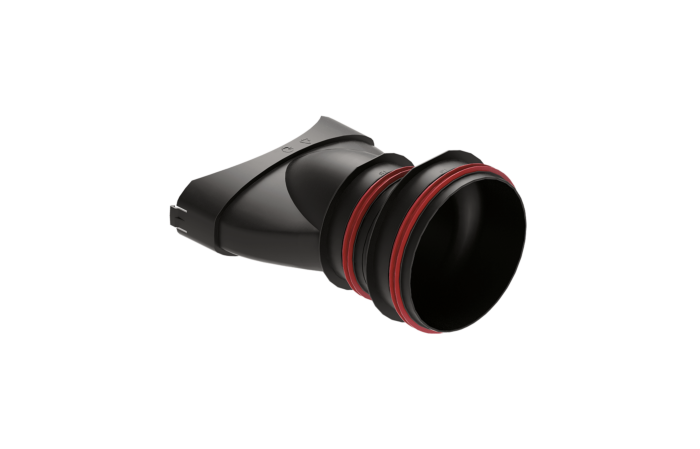

Main side connector ARIA CONNECT 125/160mm

The connector is used to join supply or exhaust (insulated) pipes 125mm/160mm to either side of the distribution box.

Fits all ventilation systems: 63 mm, 75 mm and 90 mm

The connector is fixed to the oval slot on either side of the distribution box, replacing the 4x63 mm or 3x75 mm or 2x90 mm modul

The connector is used to attach mass flow ducts (ARIA ADURO) for the transmission of large air flows to/from the heat recovery unit.

The connector’s standard diameters make it possible to also connect metal (SPIRO) or other ducts

It allows for the connection of 125mm and 160mm pipes.

The connector is provided with gaskets for 125 and 160 mm diameters. Gaskets ensure a tight and rigid connection.

The connector has a groove to facilitate the severance of 160 mm diameter, in case the 125mm is required. This is recommended in order to minimise pressure losses.

ARIA MVHR system is the only one on the market with the highest airtightness class – ATC 1 according to EN 17192, which guarantees quiet operation and greater energy saving.
