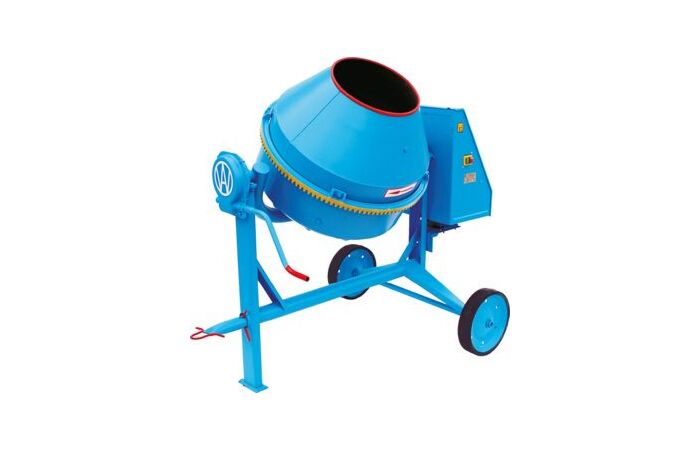

Concrete mixer BWA-150 / 230V
The BWA-150 3-mixer free fall concrete mixer has a working capacity of 150 liters (total 260), and is driven by a Polish Besel engine with a power of 1500 W.
Such a capacity requires a solid structure, so the whole is supported by a massive, steel frame with a cast-iron transmission (rack and rim).
A decent BWA-150 concrete mixer for 230 Volts weighs 185 kg.
It is a trustworthy partner and a tool for professionals who require reliable action from the concrete mixer for many years.
Type BWA-150 IU
- height (H), 1500 mm
- width (S), 1150 mm
- min length (D1) 1650 mm
- max length (D2) 2200 mm
Loading height 1100 mm
Dumping height 520 mm
Total capacity 260 dm3
Working capacity 150 dm3
Drum outer diameter 770 mm
Charge hole diameter. 390 mm
Rotation of the concrete mixer drum 28 rpm
Capacity 2.4 m3 / h
Curb weight 185 kg
Electric engine:
- type Sg804S
- 1.5 kW power
- revolutions 1415 rpm
- voltage 230 V
Length of the electric cable:
- from the engine to the switch: 0.4 m
- from switch to plug: 1 m
